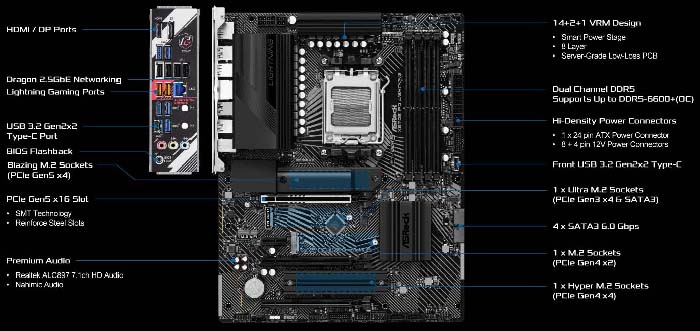

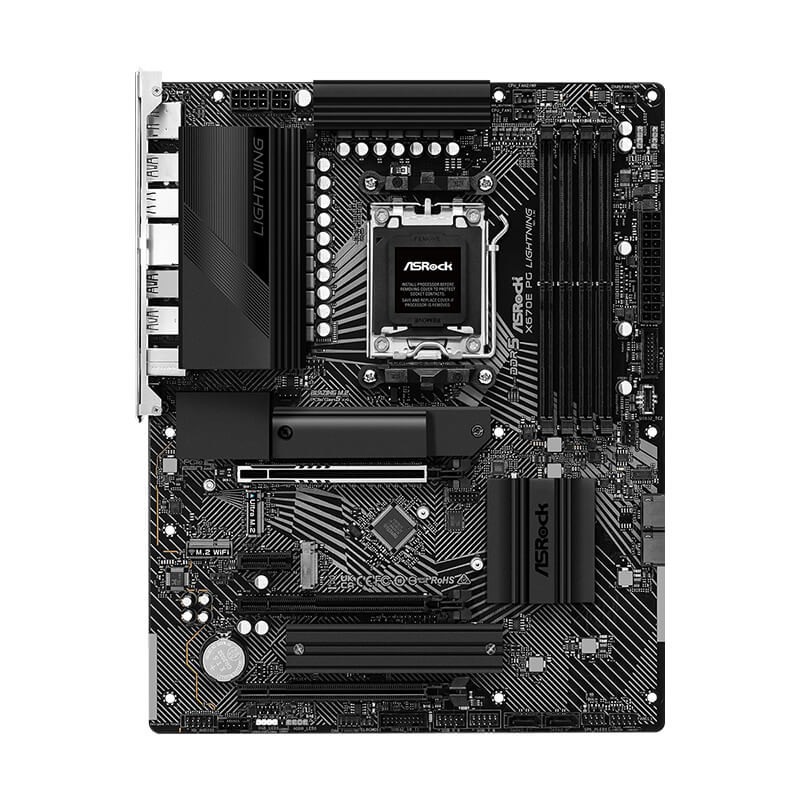

Bo Mạch Chủ Asrock X670E PG Lightning

ASROCK

X670E PG Lightning

ATX

AMD5

X670

4 x DDR5 DIMM Slots

4800 - 6600+(OC) MHz

128GB

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

Chipset:

 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode

1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

4 x SATA3 6.0 Gb/s Connectors

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode

1 x PCIe 4.0 x16 Slot (PCIE3), supports x4 mode

1 x PCIe 4.0 x1 Slot (PCIE2)

1 x PCIe 4.0 x16 Slot (PCIE4), supports x1 mode

4 x SATA3 6.0 Gb/s Connectors

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode

Chipset:

 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes

 1 x M.2 Socket (M2_3, Key M), supports type 2280 PCIe Gen4x2 (32 Gb/s) mode

1 x Hyper M.2 Socket (M2_4, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode

Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

7.1

 2.5 Gigabit LAN

Dragon RTL8125BG

10/100/1000/2500 Mb/s

 2 x Antenna Mounting Points

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

6 x USB 3.2 Gen1 Ports (USB32_34 are Lightning Gaming Ports)

4 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver)

1 x SPI TPM Header

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)

1 x Front Panel Audio Connector

1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

1 x Power LED and Speaker Header

1 x RGB LED Header*

3 x Addressable LED Headers**

30.5 cm x 24.4 cm

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector (Hi-Density Power Connector)

1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
