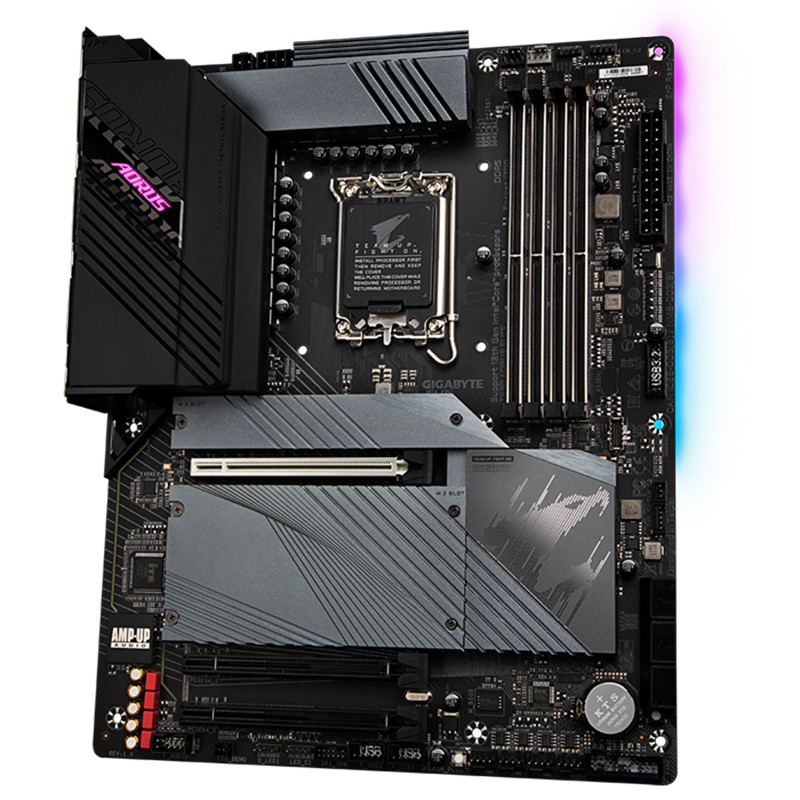

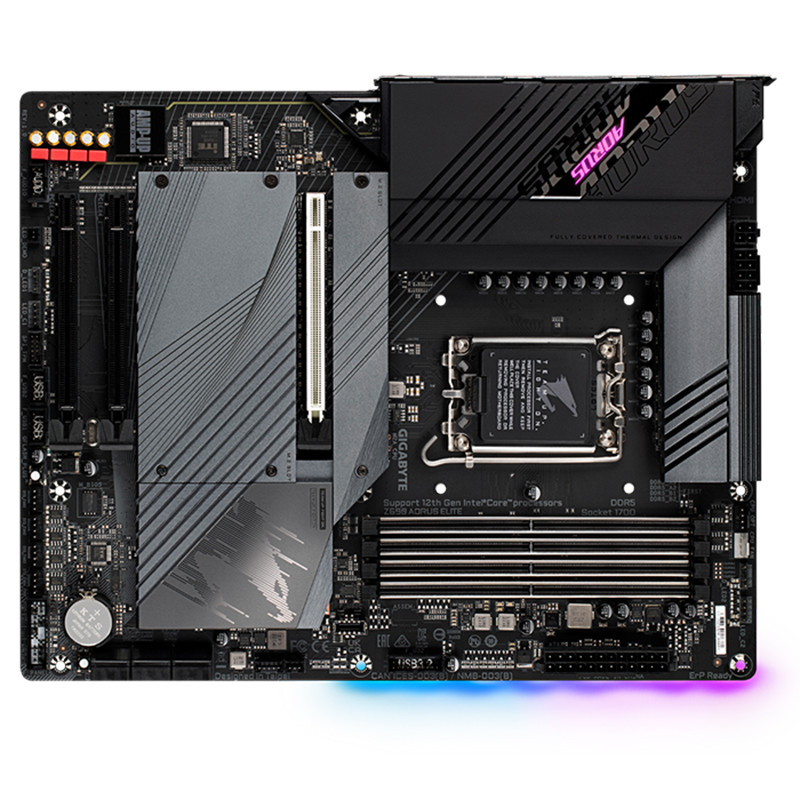

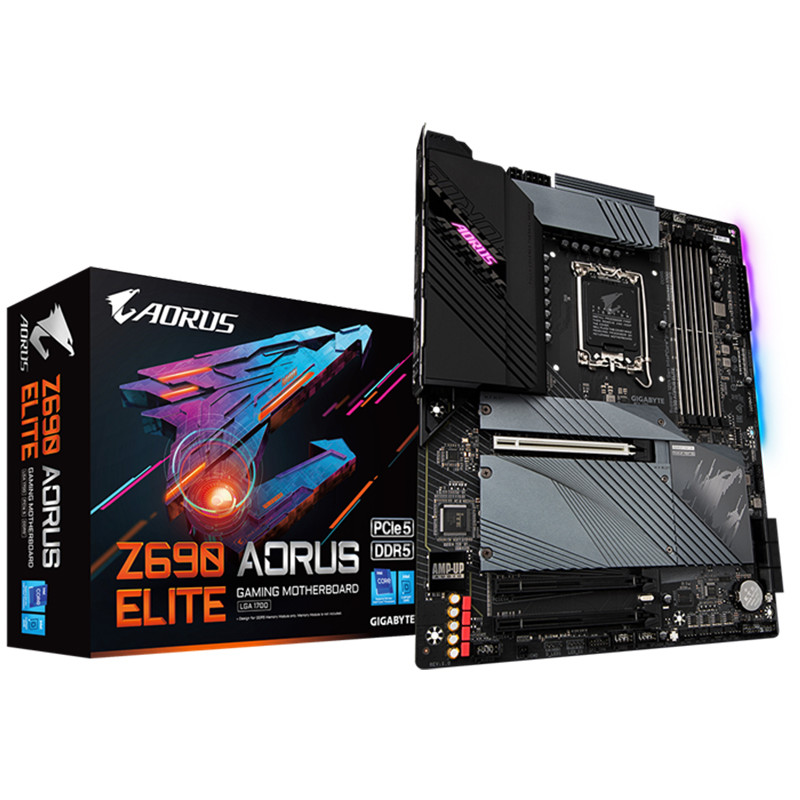

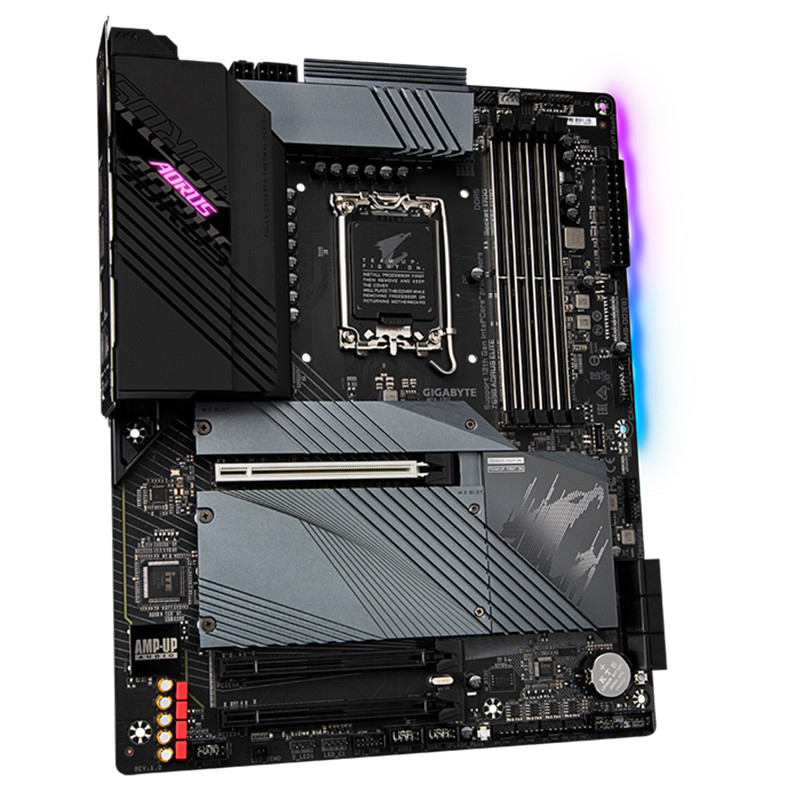

Bo Mạch Chủ Gigabyte Z690 AORUS Elite DDR4
Socket: LGA1700 hỗ trợ CPU intel thế hệ 12
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: PCI Express x16 slot
Khe cắm ổ cứng: M.2 connector, 6 x SATA 6Gb/s
Socket: LGA1700 hỗ trợ CPU intel thế hệ 12
Kích thước: ATX
Khe cắm RAM: 4 khe (Tối đa 128GB)
Khe cắm mở rộng: PCI Express x16 slot
Khe cắm ổ cứng: M.2 connector, 6 x SATA 6Gb/s
Thương Hiệu | GIGABYTE |
Model | GIGABYTE Z690 AORUS ELITE DDR4 |
Kích Cỡ | ATX |
CPU Socket | LGA1700 |
Chipset | Intel® Z690 Express Chipset |
Số Khe Ram | 4 |
Bus Ram Hỗ Trợ | Support for DDR4 5333(O.C.)/ DDR4 5133(O.C.)/DDR4 5000(O.C.)/4933(O.C.)/4800(O.C.)/ 4700(O.C.)/ 4600(O.C.)/ 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 MHz memory modules |
Dung Lượng Ram Tối Đa Hỗ Trợ | 128 GB |
Số Kênh Bộ Nhớ Hỗ Trợ | Dual channel |
PCI Express 3.0 x16 | 1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (The PCIEX16 slot conforms to PCI Express 5.0 standard.) |
PCI Express x1 | 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (The PCIEX4 slots conform to PCI Express 3.0 standard.) |
Số Cổng SATA | 6 x SATA 6Gb/s connectors |
M.2 | 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB) |
LAN Chipset | Intel® Z690 Express Chipset |
Tốc Độ LAN | 1 Gbps/100 Mbp |

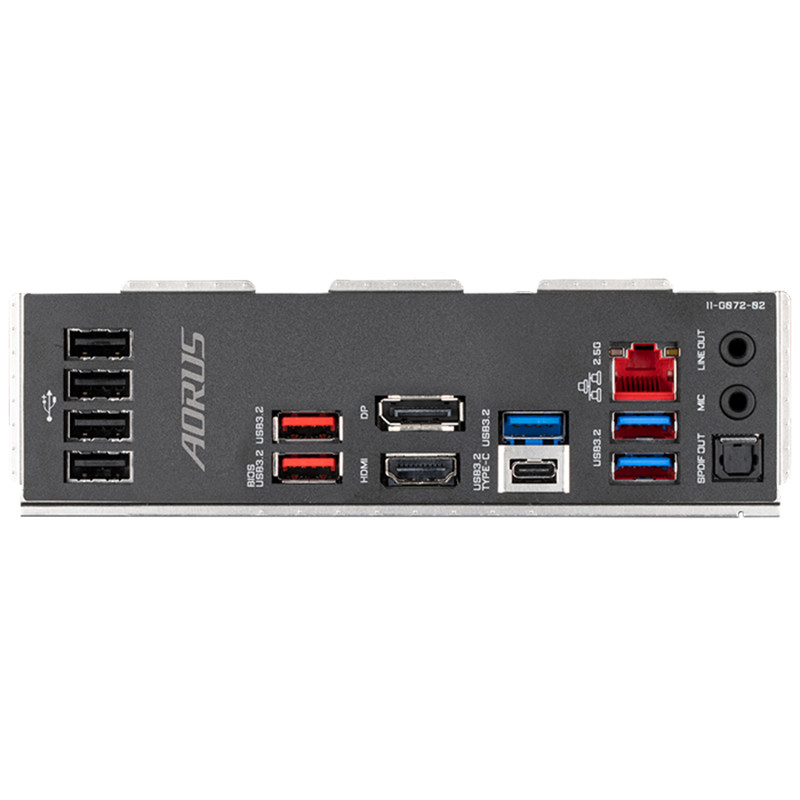

Cổng I/O Phía Sau | 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks |
Onboard USB | 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
Cổng Kết Nối Khác | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers |
Đèn LED Đi Kèm | 2 x RGB LED strip headers |
Kích Thước (W x L) | 30.5cm x 24.4cm |
