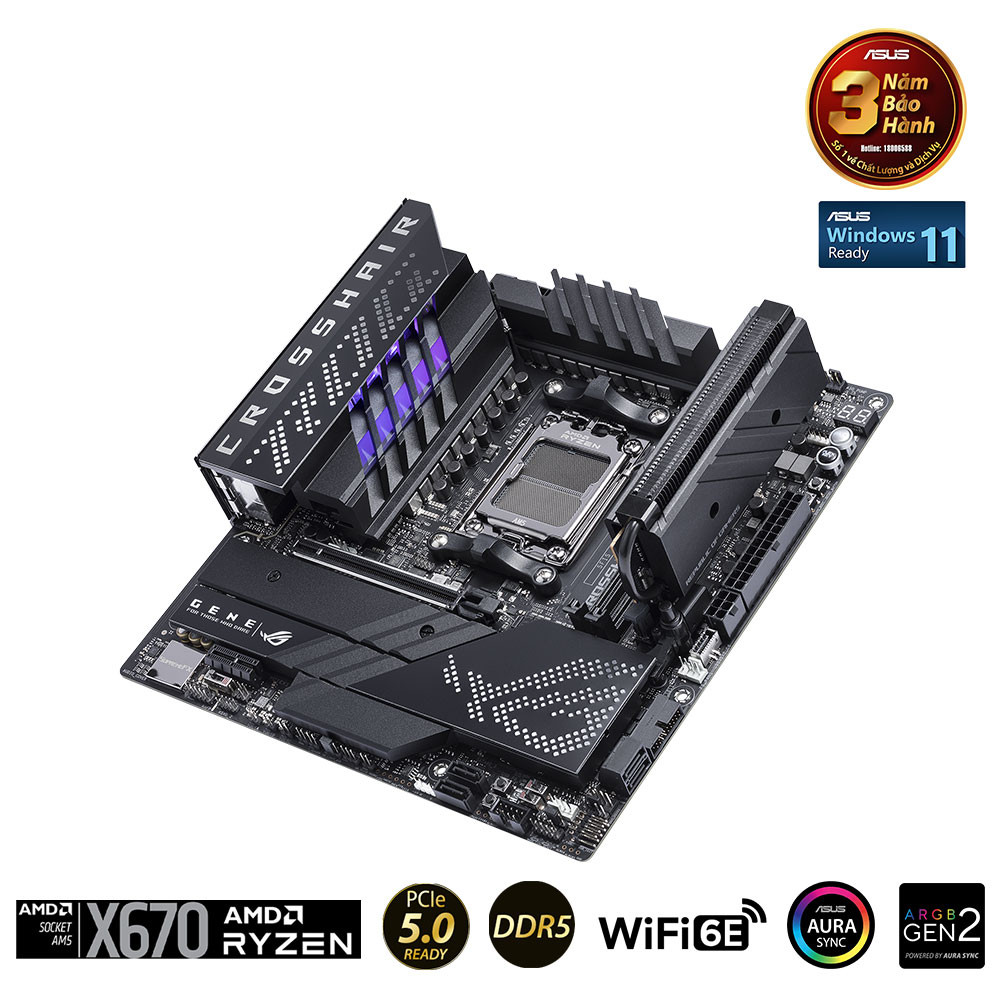

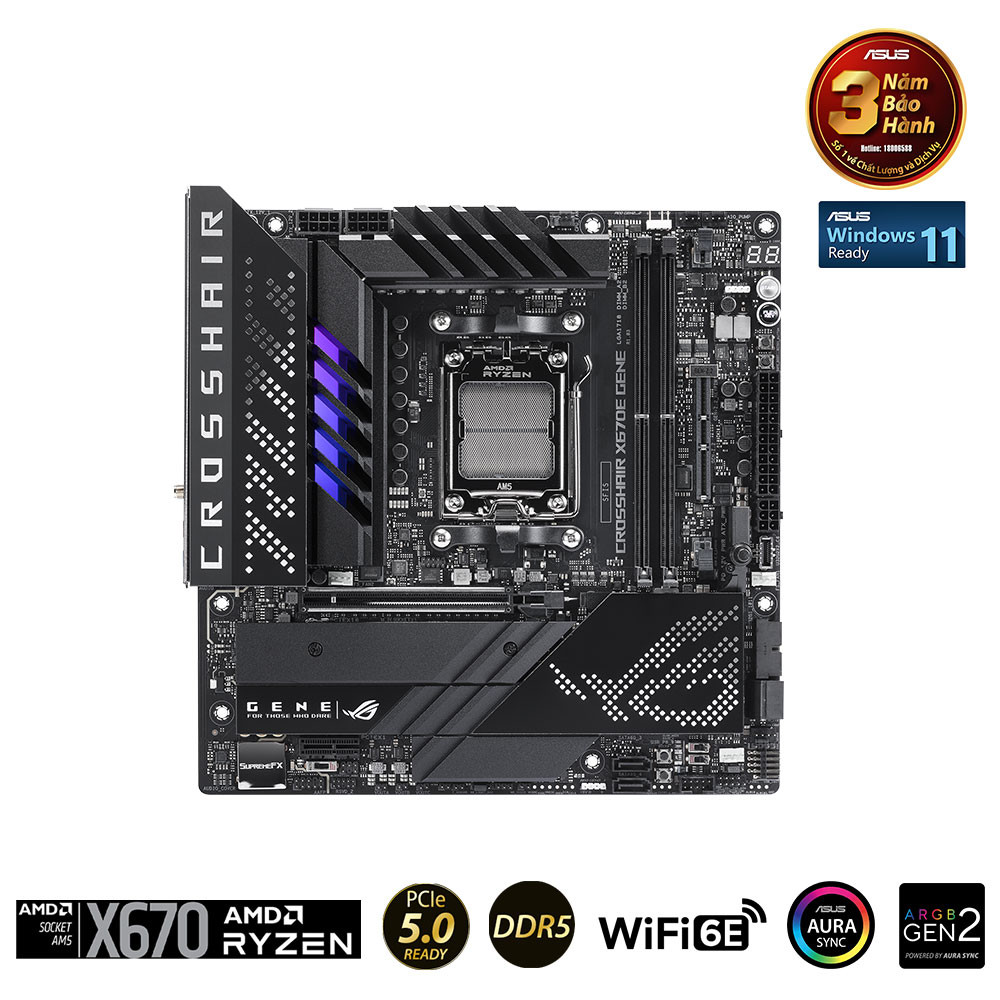

Bo Mạch Chủ ASUS ROG CROSSHAIR X670E GENE

ASUS

ASUS ROG CROSSHAIR X670E GENE

M-ATX

AM5

X670

2

DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC) / 5200 / 5000 / 4800 MHz ECC and Non-ECC, Un-buffered Memory (tối đa 64GB)

64GB

AMD Ryzen™ 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot

AMD X670 Chipset

1 x PCIe 4.0 x1 slot

4 x SATA 6Gb/s ports

Total supports 3 x M.2 slots

6Gb/s ports*

AMD Ryzen™ 7000 Series Desktop Processors

M.2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode)

GEN-Z.2_1 slot (Key M) via GEN-Z.2, type

2242/2260/2280/22110 (supports PCIe 5.0 x4)**

AMD X670 Chipset

GEN-Z.2_2 slot (Key M) via GEN-Z.2, type

2242/2260/2280/22110 (supports PCIe 4.0 x4)

ROG SupremeFX 7.1 Surround Sound High

Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- SupremeFX Shielding Technology

- Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.3

2 x USB4® ports with Intel® JHL8540 USB4® controller (2 x USB Type-C®)

6 x USB 3.2 Gen 2 ports (5 x Type-A + 1 x USB Type-C®)

2 x USB 2.0 ports (2 x Type-A)

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet

5 x Gold-plated audio jacks*

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

1 x PS/2 Keyboard/Mouse combo port

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

1 x 4-pin Chassis Fan header

3 x 4-pin Full Speed Fan headers

1 x 80 Light Bar jumper

2 x Addressable Gen 2 headers

1 x Alteration Mode Switch

1 x Aura RGB header

2 x BCLK button

1 x FlexKey button

1 x 10-1 pin Front Panel Audio header (AAFP)

1 x LN2 Mode jumper

1 x Osc sence header

12 x ProbeIt Measurement Points

1 x ReTry button

1 x RSVD switch

1 x RSVD header

1 x Safe Boot button

1 x Slow Mode switch

1 x Start button

1 x 10-1 pin System Panel header

1 x Thermal Sensor header

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector

1 x 6-pin PCIe Graphics Card connector
