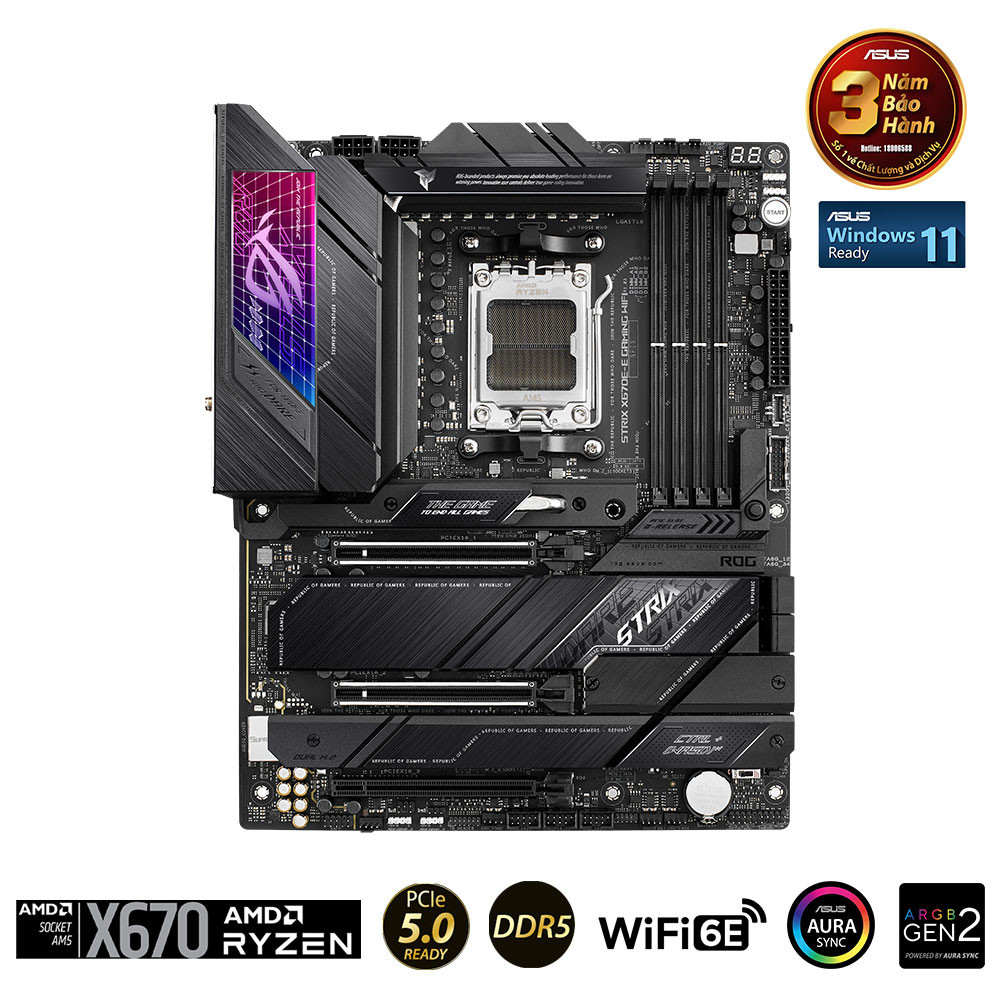

Bo Mạch Chủ ASUS ROG STRIX X670E-E GAMING WIFI

ASUS

ASUS ROG STRIX X670E-E GAMING WIFI

ATX

AM5

X670

4

DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory

128GB

AMD Ryzen™ 7000 Series Desktop Processors

2 x PCIe 5.0 x16 slots (supports x16 or x8/x4 modes)

AMD X670 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

4 x SATA 6Gb/s ports

Total supports 4 x M.2 slots

AMD Ryzen™ 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode))

AMD X670 Chipset

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

ROG SupremeFX 7.1 Surround Sound High

Definition Audio CODEC ALC4080

- Impedance sense for front and rear

headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback

output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

Audio Features

- Audio Shielding

- Savitech SV3H712 AMP

- Gold-plated audio jacks

- Rear optical S/PDIF out port

- Premium audio capacitors

- Audio cover

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth v5.2

1 x USB 3.2 Gen 2x2 port (1 x Type-C®)

12 x USB 3.2 Gen 2 ports (10 x Type-A, 2 x USB

Type-C®)

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Gold-plated audio jacks*

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button

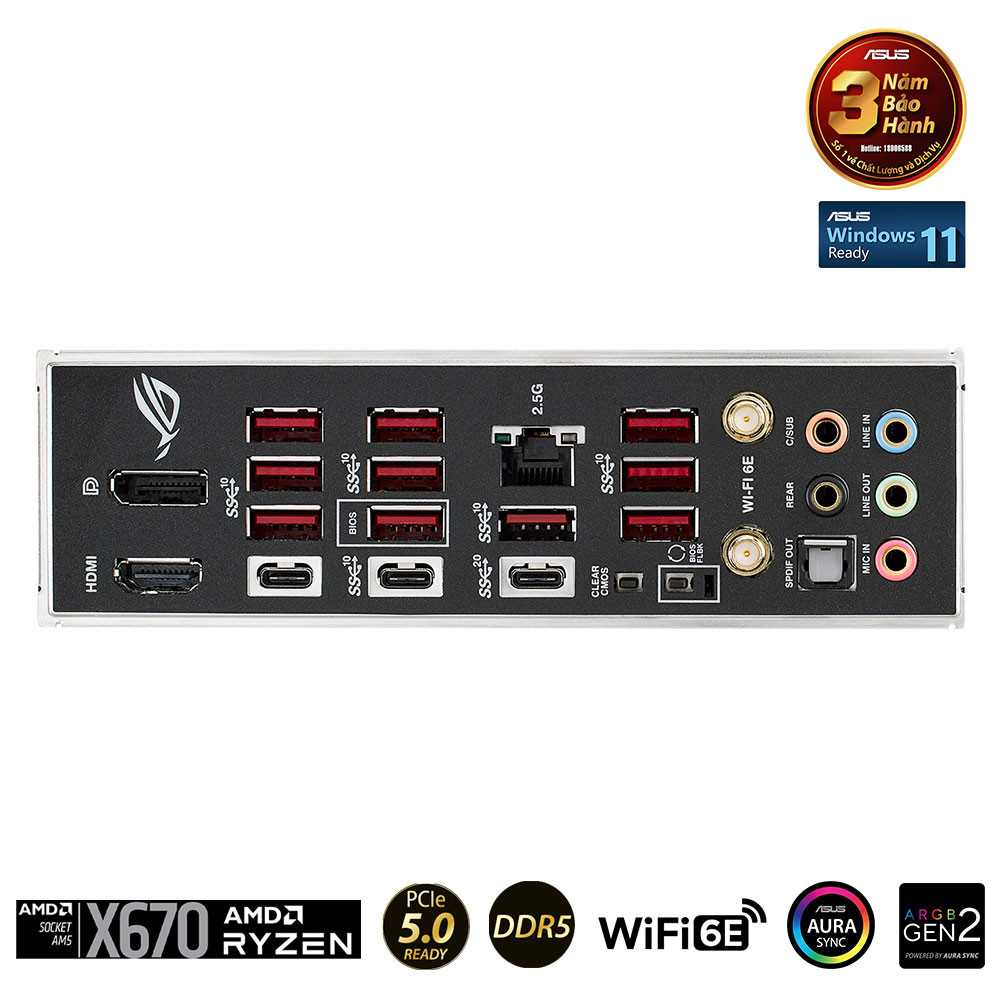

Rear USB (Total 13 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

12 x USB 3.2 Gen 2 ports (10 x Type-A + 2 x

USB Type-C®)

Front USB (Total 9 ports)

1 x USB 3.2 Gen 2x2 connector

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

5 x 4-pin Chassis Fan header

1 x USB 3.2 Gen 2x2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports

additional 2 USB 3.2 Gen 1 ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

3 x Addressable Gen 2 headers

1 x AURA RGB header

1 x Alteration Mode Switch

1 x CPU Over Voltage jumper

1 x Front Panel Audio header (AAFP)

1 x Start button

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thermal Sensor header

1 x Thunderbolt™ header

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

1 x 24-pin Main Power connector

2 x 8-pin +12V Power connector
