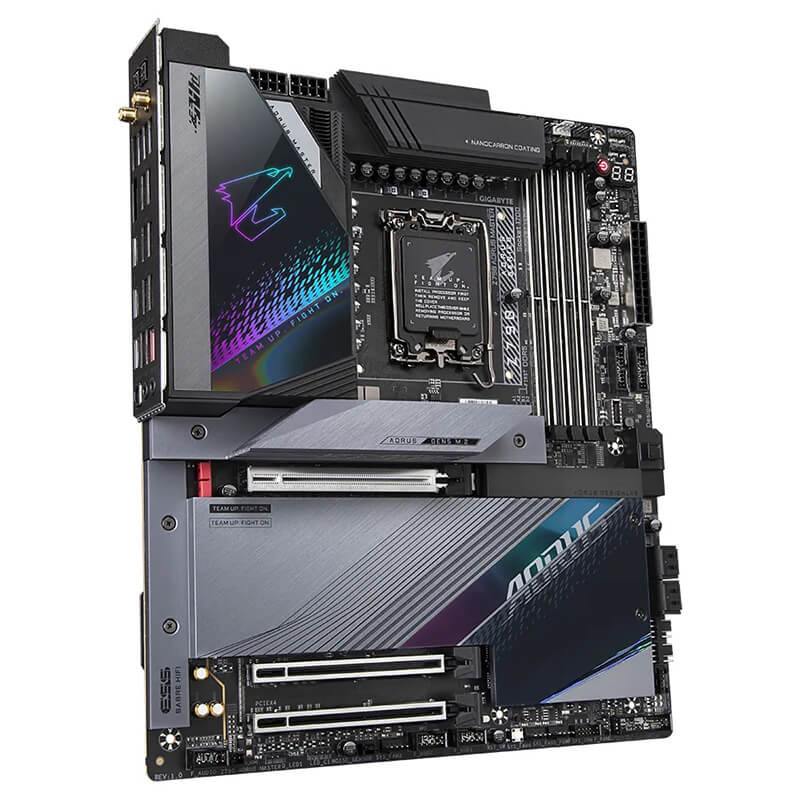

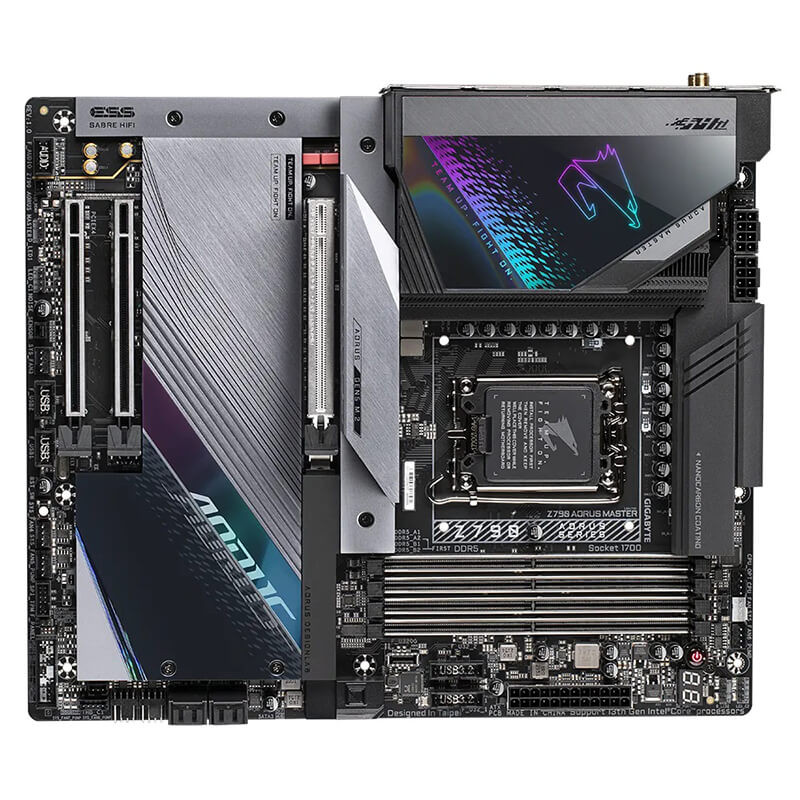

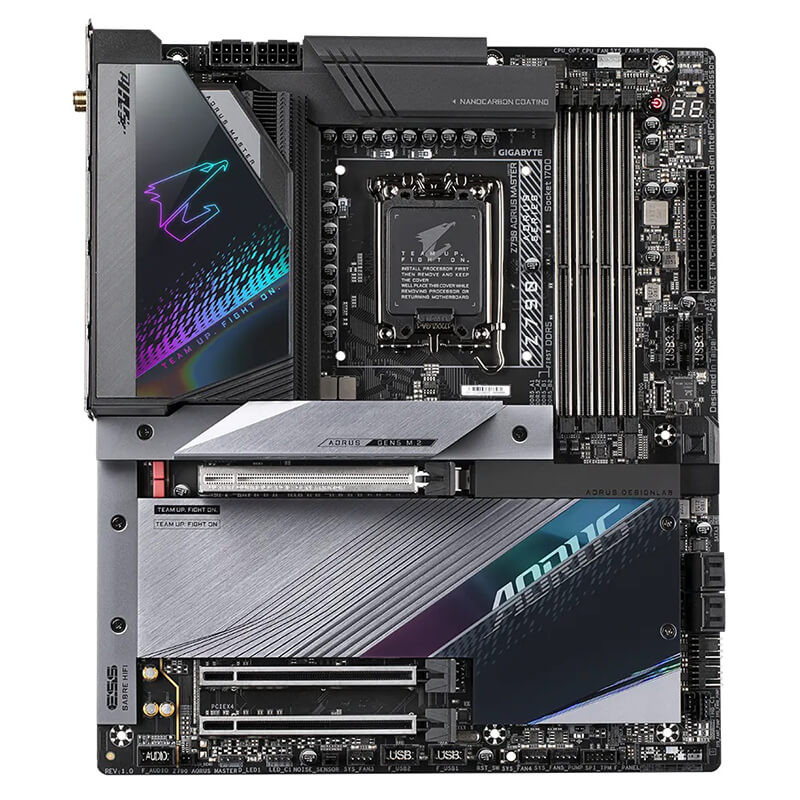

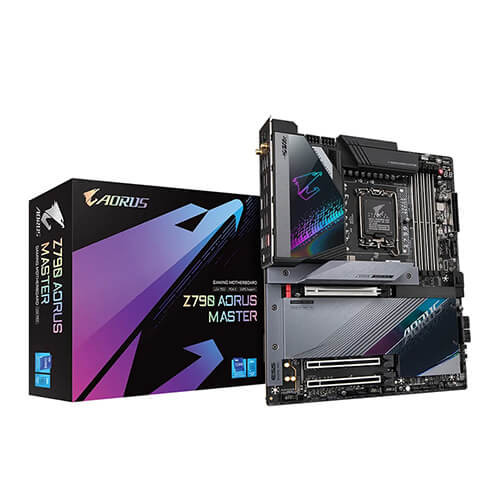

Bo Mạch Chủ Gigabyte Z790 AORUS MASTER

Gigabyte

Z790 AORUS MASTER

E-ATX

LGA1700

Intel® Z790 Express Chipset

4 x DDR5 DIMM sockets supporting up to 128 GB

4000-4800MHz up to 8000Mhz (OC). Có hỗ trợ XMP 3.0

128GB

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory Profile (XMP) memory modules

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)

4 x SATA 6Gb/s connectors

1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU)

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

1 x M.2 connector (Socket 3, M key, type 2280/2260 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)

RAID 0, RAID 1, RAID5, and RAID 10 support for NVMe SSD storage devices

RAID 0, RAID 1, RAID5, and RAID 10 support for SATA storage devices

Realtek® ALC1220-VB CODEC

* The front panel line out jack supports DSD audio.

ESS ES9118 DAC chip

Support for DTS:X® Ultra

High Definition Audio

2/4/5.1-channel

Marvell® AQtion AQC113C 10GbE LAN chip

10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps

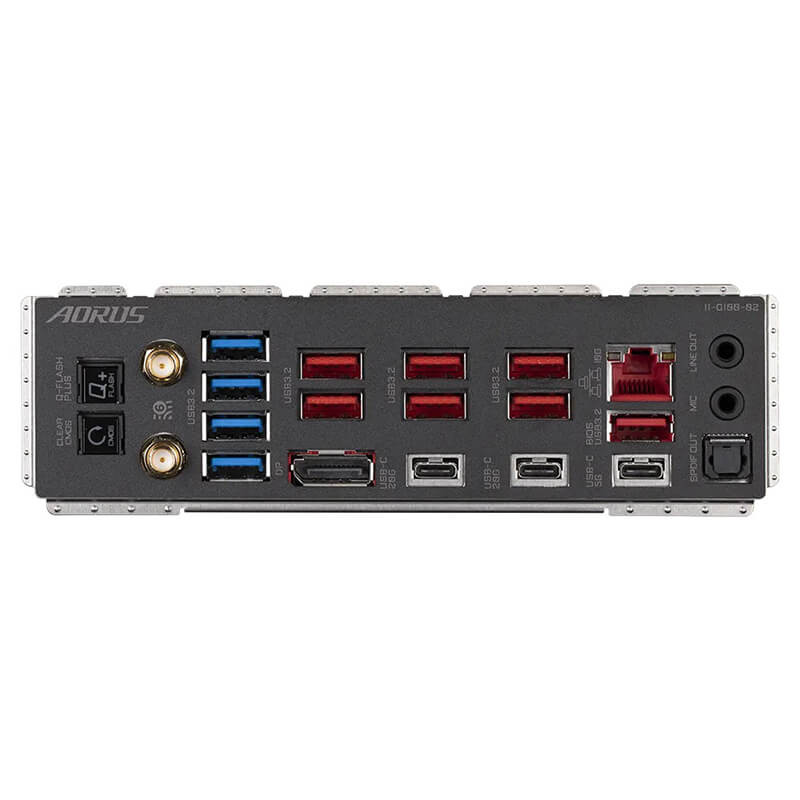

1 x Q-Flash Plus button

1 x Clear CMOS button

2 x SMA antenna connectors (2T2R)

1 x DisplayPort

1 x USB Type-C® port, with USB 3.2 Gen 1 support

2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support

7 x USB 3.2 Gen 2 Type-A ports (red)

4 x USB 3.2 Gen 1 ports

1 x RJ-45 port

1 x optical S/PDIF Out connector

2 x audio jacks

1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

2 x USB 3.2 Gen 1 headers

2 x USB 2.0/1.1 headers

1 x CPU fan header

1 x water cooling CPU fan header

4 x system fan headers

4 x system fan/water cooling pump headers

5 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x noise detection header

2 x Thunderbolt™ add-in card connectors

1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

1 x power button

1 x reset button

1 x reset jumper

1 x Clear CMOS jumper

2 x temperature sensor headers

Voltage Measurement Points

2 x addressable LED strip headers

2 x RGB LED strip headers

30.5cm x 26.0cm

1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors
